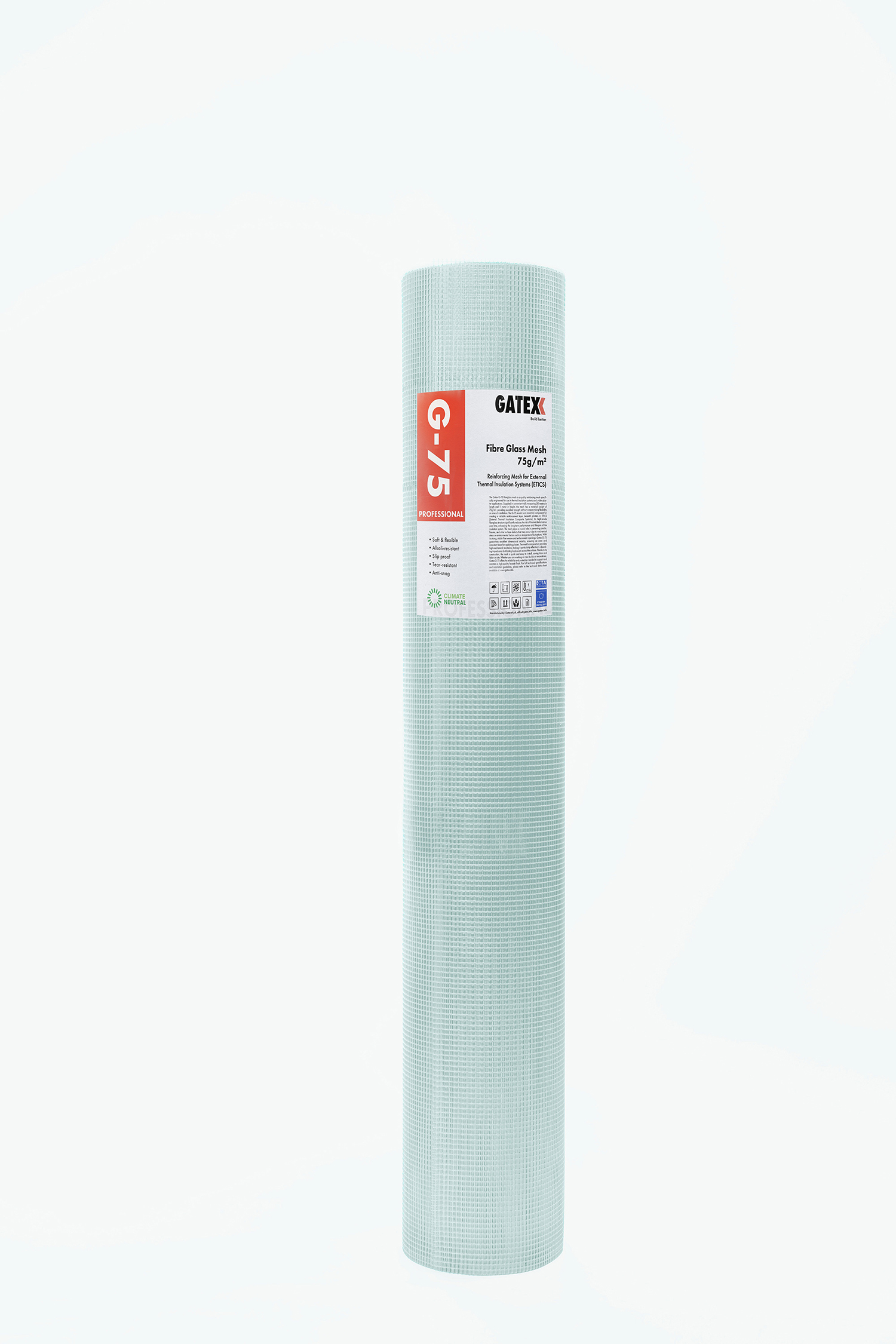

ETICS 10×10 Fiberglass Mesh High-performance fiberglass mesh engineered for External Thermal Insulation Composite Systems (ETICS) and other façade reinforcement applications. The G-75 Professional offers superior fiber integrity, controlled coating adhesion, and exceptional mechanical strength relative to its lightweight structure — making it ideal for both standard and demanding thermal insulation systems. Professionally woven from continuous E-glass fibers for dimensional stability, Uniform coating penetration ensuring consistent alkali resistance, High tensile strength with low elongation for reliable crack prevention, Soft, flexible texture for effortless handling and embedding, Excellent bonding to adhesives and base coats, Long-term resistance to mechanical and thermal stres, Maintains structure and flexibility even after ageing and exposure
Key Features
● Weight per unit area: approx. 75 g/m²
● Mesh size: approx. 10.0 (±1.0) mm × 10 (±1.0) mm
● Width: 100 cm
● Length per roll: 50 m
● Color: White (standard)
● Packaging: Shrink-wrapped rolls with label
The GATEX G-75 Professional fiberglass mesh should be fully embedded in a 2–3 mm layer of base coat adhesive applied on the insulation board surface.
Installation Steps:
● Unroll vertically from top to bottom.
● Press into fresh adhesive with a float or trowel to ensure full coverage.
● Overlap adjacent strips by at least 10 cm.
● Avoid folds, creases, and air pockets.
● Apply a second adhesive layer to completely cover the mesh.
Important:
Overlaps must not align with panel joints.
At windows, doors, and corners, install additional reinforcement patches (approx. 20 × 30 cm) to increase impact resistance.
● Professional-grade ECR fiberglass for ETICS applications
● Enhanced coating for superior alkali resistance and longevity
● Smooth weave for fast application and uniform adhesion
● Balanced strength-to-weight ratio reducing material stress
● Meets European standards for mechanical performance and durability
Material: E-glass fibre with alkali-resistant and fiber-fixing coating
Length: 50 m (±1 %)
Width: 100 cm (±1 %)
Mesh size: 10.0 (±1.0) mm × 10 (±1.0) mm
Treated fabric weight: 75 g/m² (±5 %)
Organic content: 20 (±4 %) %
Average tensile strength (MD/CMD – warp/weft): ≥ 1300 N/5 cm / ≥ 1200 N/5 cm
Elongation (MD/CMD): 2.4–3.0 % / 2.4–3.0 %
Average tensile strength after ageing (MD/CMD): ≥ 1000 N/5 cm / ≥ 1000 N/5 cm
Elongation after ageing (MD/CMD): 1.6–2.0 % / 1.6–2.0 %
Reaction to fire: NPD
Certification: ETAG 004, TÜV Nord
Available colors: white, orange, yellow, red, blue, green
Standard roll size: 1 m × 50 m
Rolls per pallet: 35
