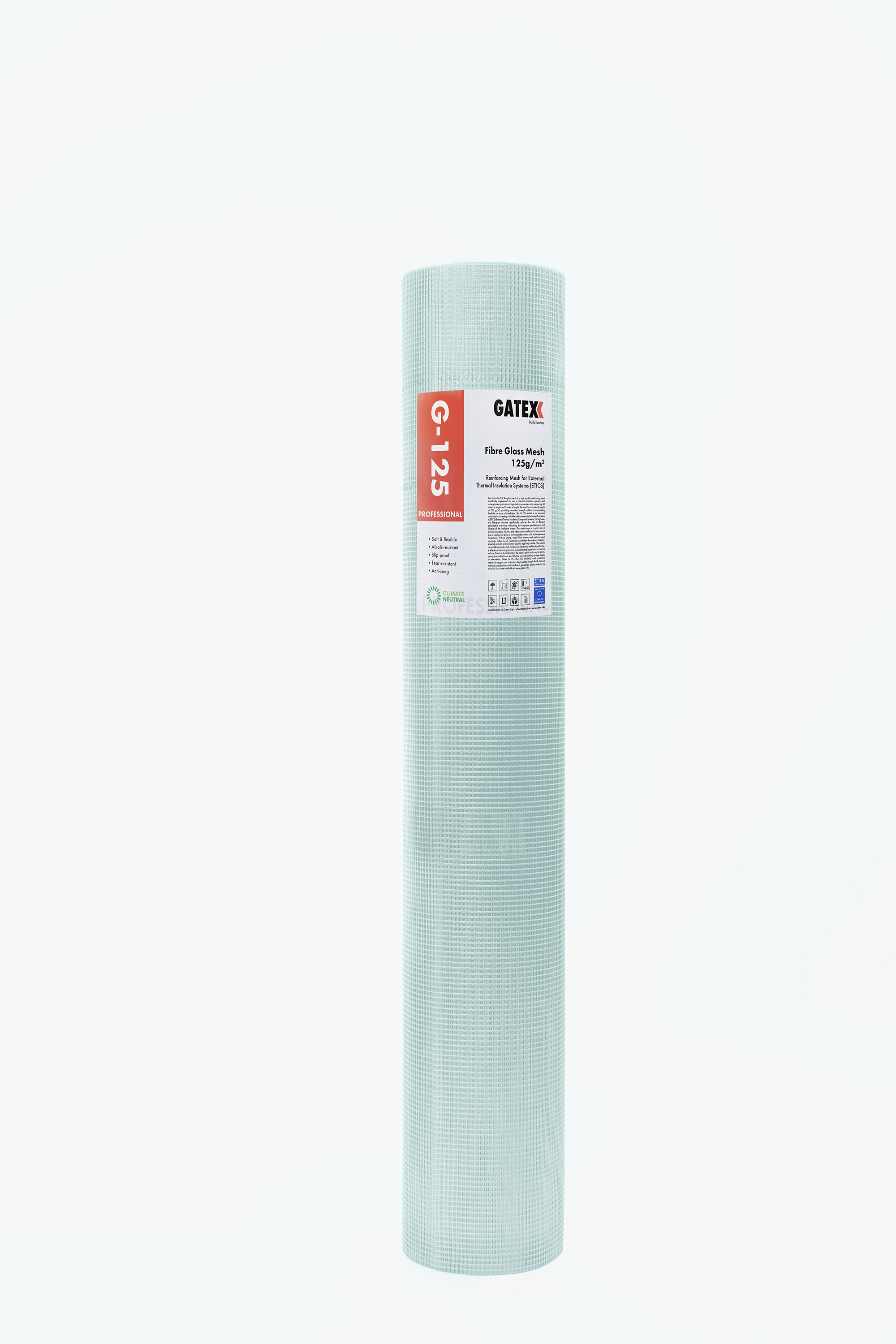

ETICS Reinforcement Fiberglass Mesh – G125 PRO High-strength fiberglass mesh engineered for External Thermal Insulation Composite Systems (ETICS). G125 PRO ensures superior reinforcement under plaster layers, enhancing façade durability and protecting against mechanical and thermal stress.
Key Features
The GATEX G125 PRO fiberglass mesh must be embedded into a base layer of smoothing adhesive (min. 2–3 mm) applied to the insulation surface. Installation steps:
Important:
Mesh overlaps must not align with panel joints. In wall corners, around windows or other openings, embed diagonal reinforcement pieces (approx. 20 × 30 cm) to strengthen vulnerable areas.
Material: Glass fibre, with alkali-resistant and fibre-fixing coating.
Length: 50 m (±1%)
Width: 100 cm (±1%)
Nominal mesh size (MD/CMD – warp/weft): (5,0 x 6,0) ±0,5 mm
Mass per unit area: 125 g/m2 (±5%)
Organic content: 16% (±4)%
Average tensile strength (MD/CMD – warp/weft): 1300 N/5 cm / 1500 /5 cm Elongation (MD/CMD – warp/weft): < 4,0 % / < 4,0 %
Average tensile strength after ageing (MD/CMD – warp/weft): > 2000 N/5 cm / > 2000 N/5 cm; min 50% / min 50%
Elongation after ageing (MD/CMD – warp/weft): 3,5 % / < 3,5 %
Average calorific value: 6,61 MJ/kg; 1,05 MJ/m2
Thickness: 0,43 (±0,02) mm
Reaction to fire: NPD
Certification: ETAG 004, TÜV Nord
Available colors: white, orange, yellow, red, blue, green.
Standard roll size: 1 m × 50 m
Number of rolls per pallet: 35
