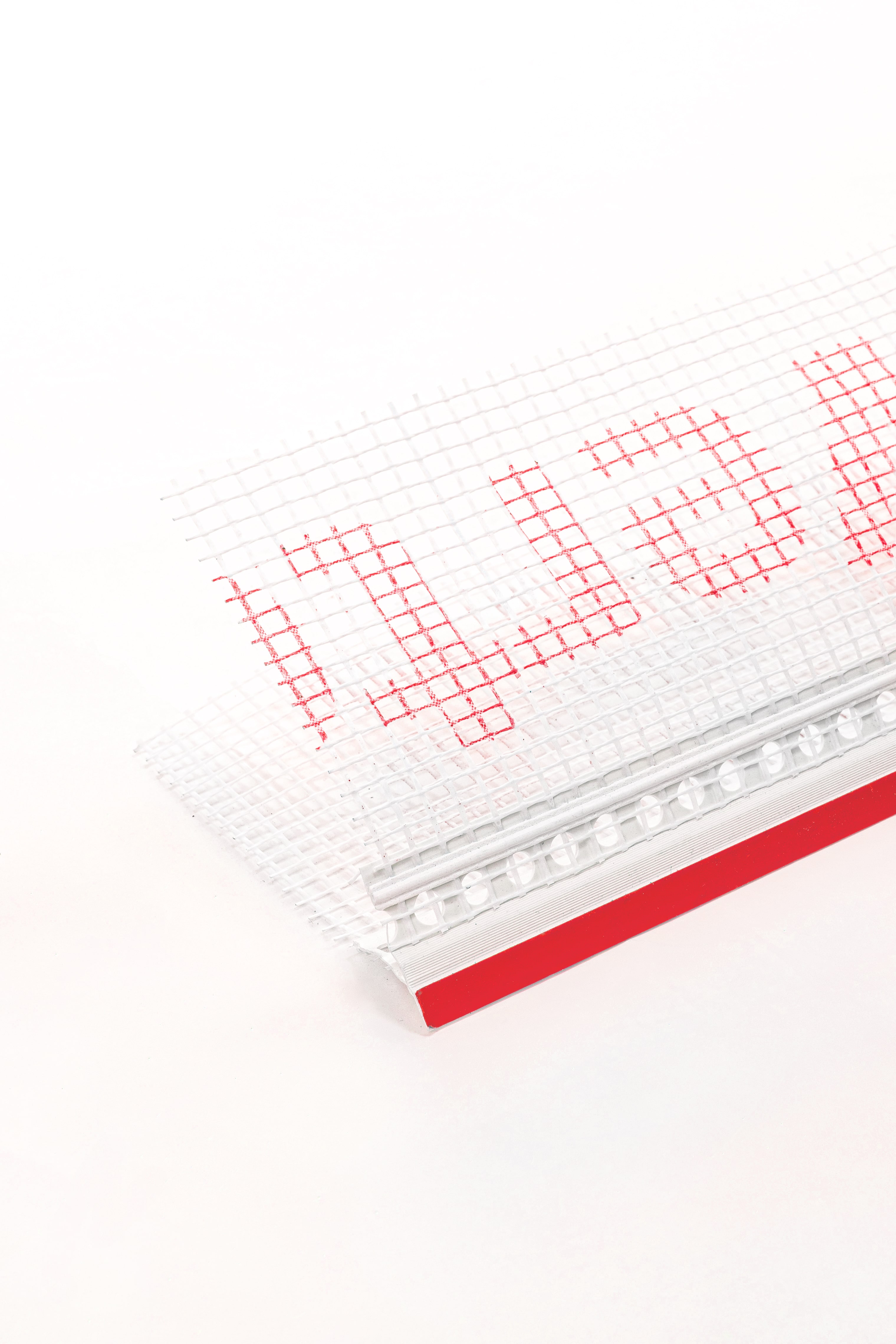

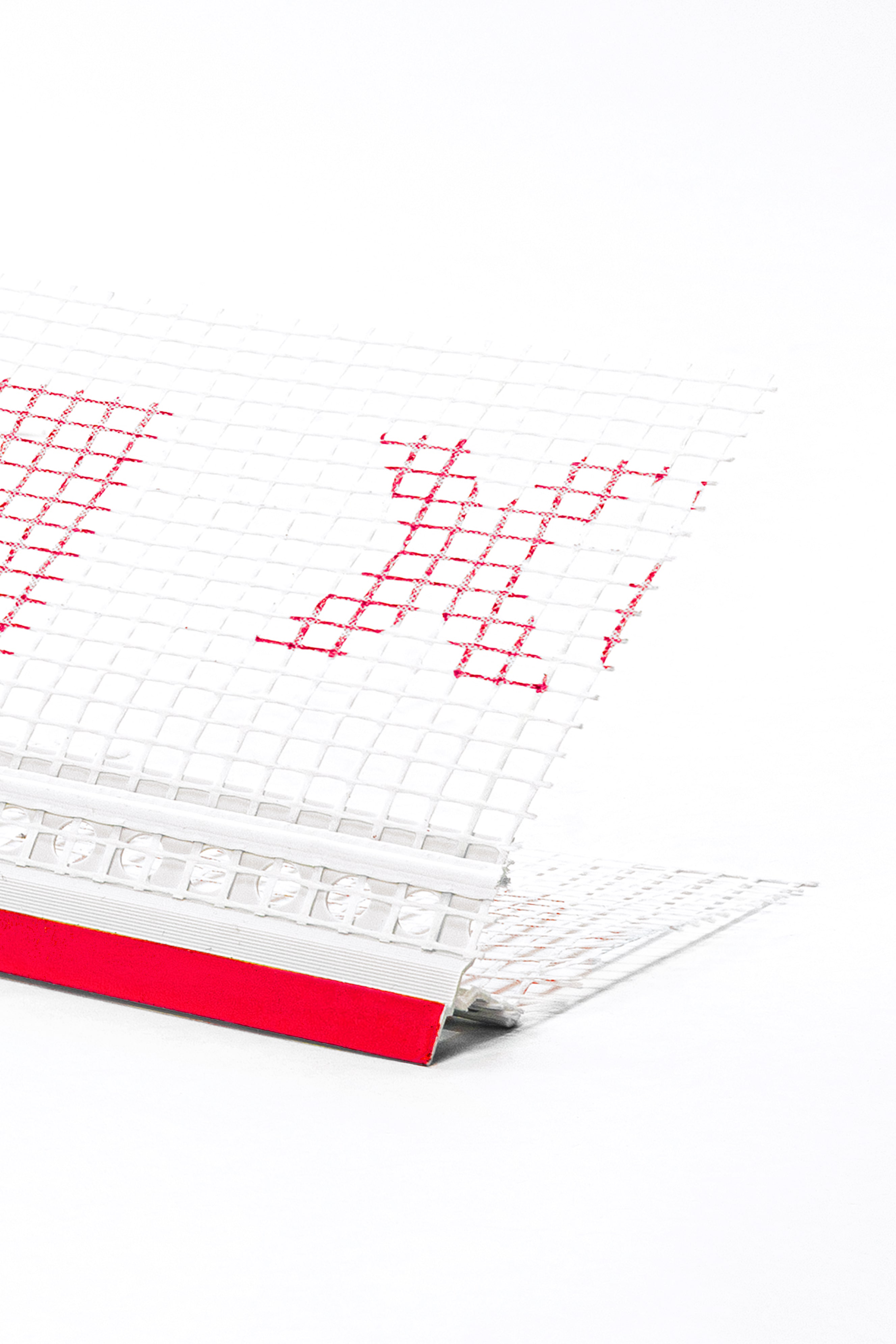

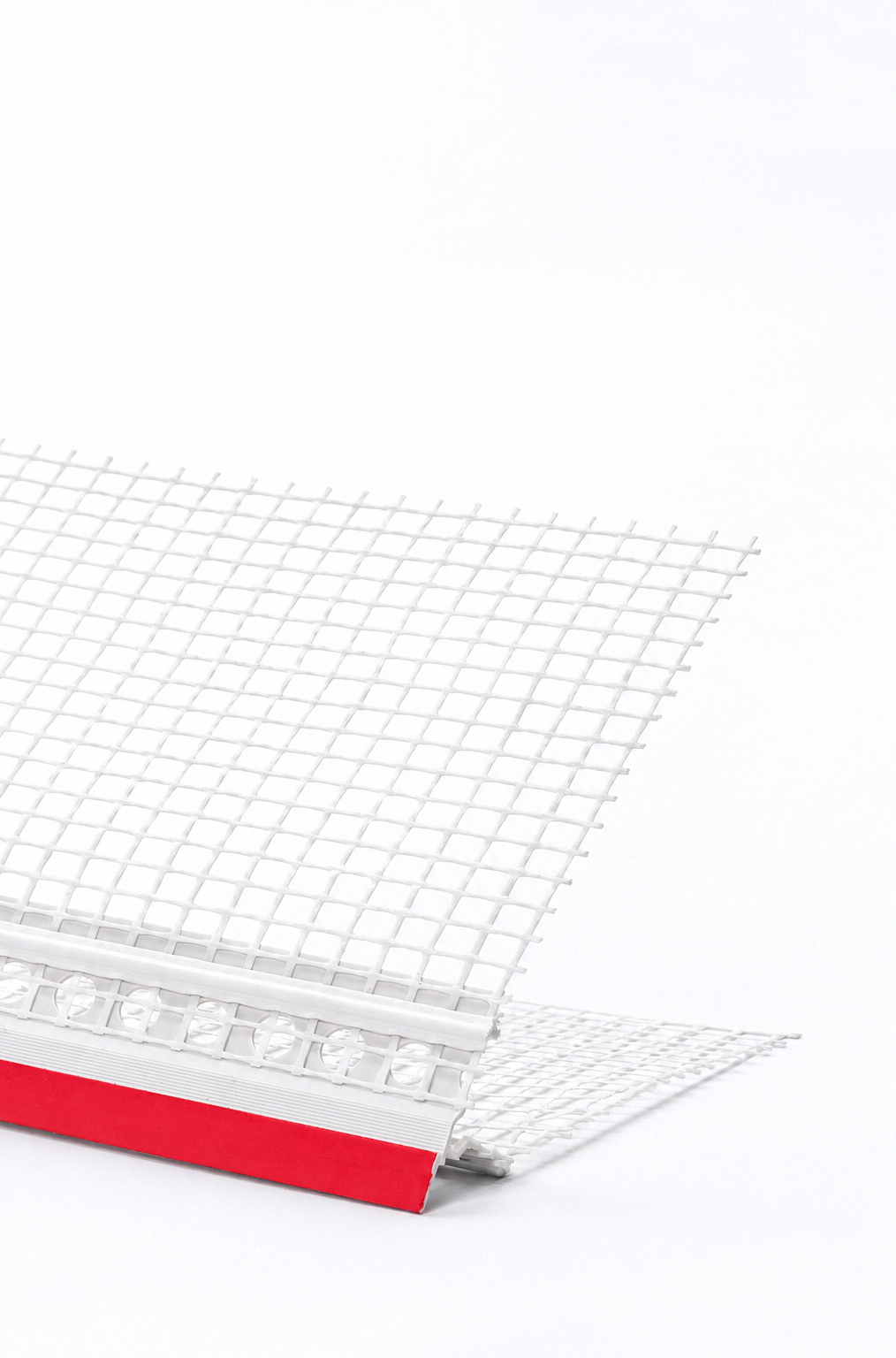

PVC Corner Bead with Eaves and Integrated Protection High-Precision Edge Reinforcement with Built-In Drip Edge for ETICS Façade Systems This high-performance PVC corner bead from GATEX features an integrated drip edge, fiberglass mesh, and protective tape—engineered for use in ETICS façade systems. Ideal for areas prone to rainwater exposure (such as balconies or lintels above windows/doors), the profile provides clean, reinforced edges and ensures effective water runoff away from the surface.
Key Features
The GATEX PVC Corner Bead with Drip should be applied after installing thermal insulation boards and before applying base adhesive and mesh layers.
Step 1
Apply façade adhesive to the prepared insulation boards already fixed to the wall.
Step 2
Press the corner bead into the fresh adhesive with the drip edge facing downward.
Step 3
Ensure the bead is fully embedded into the adhesive layer for secure bonding.
Step 4
After final façade layers are applied and cured, remove the protective tape from the drip edge.
Installation Temperature Range: +5°C to +35°C
Installation should be done by qualified personnel.
