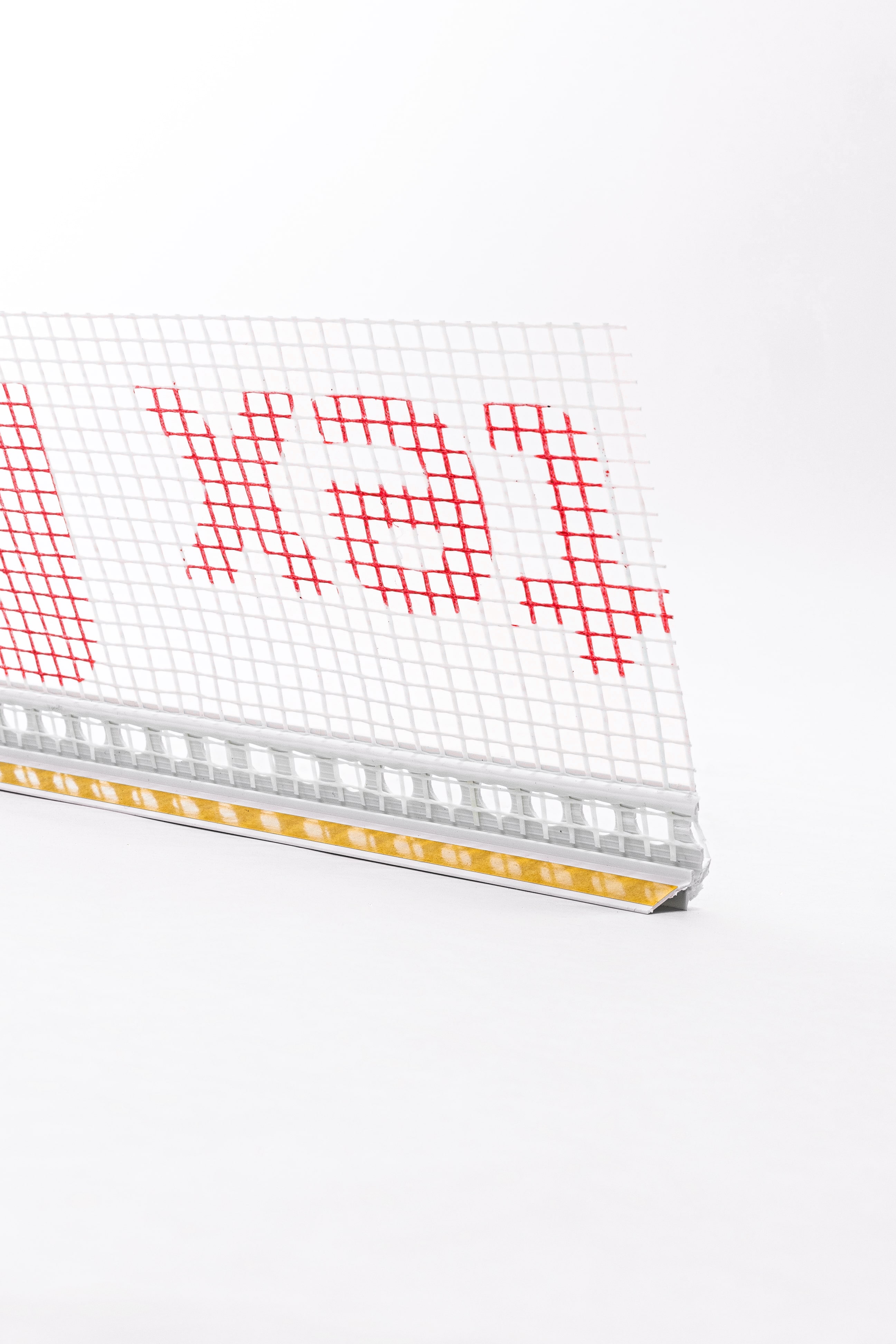

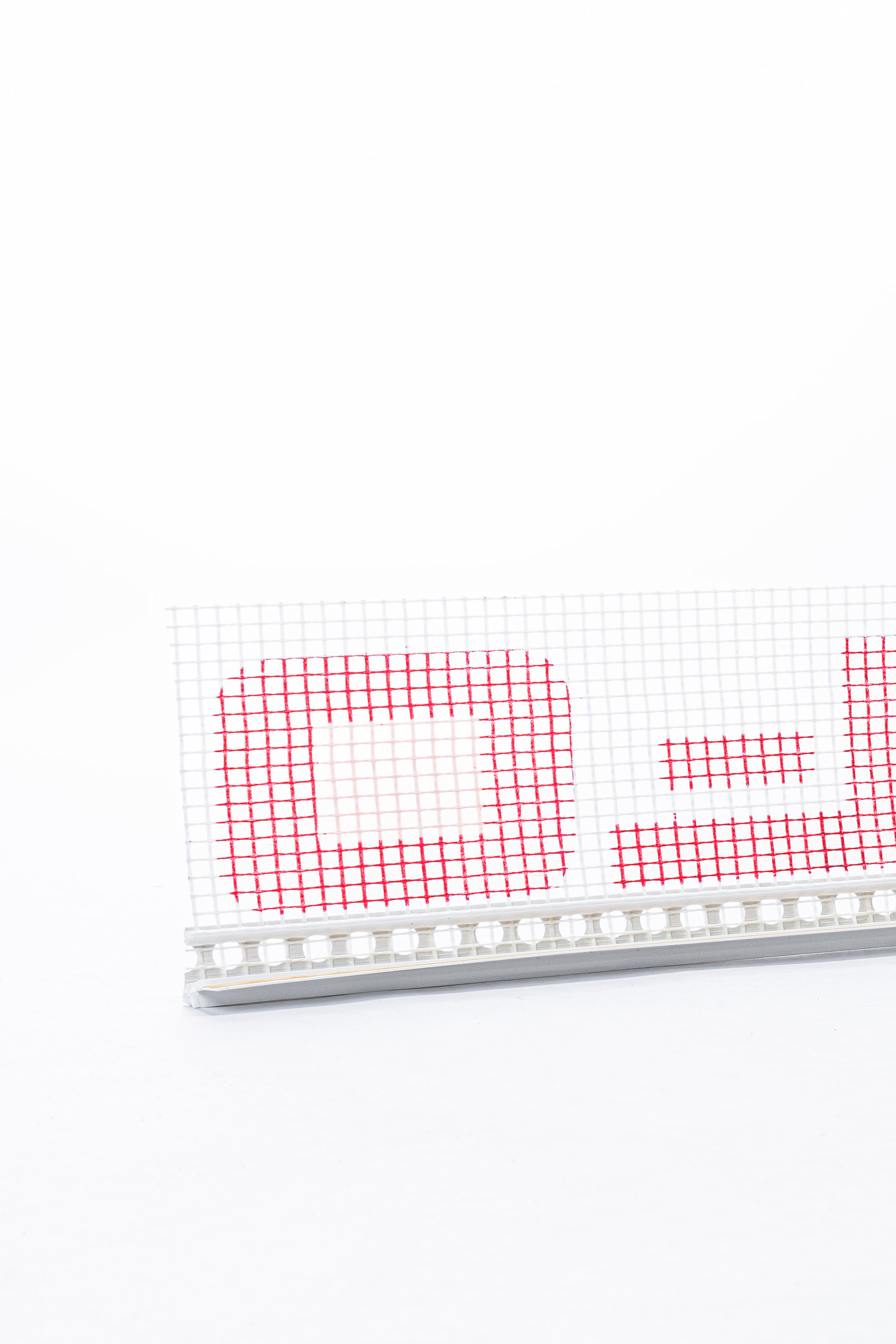

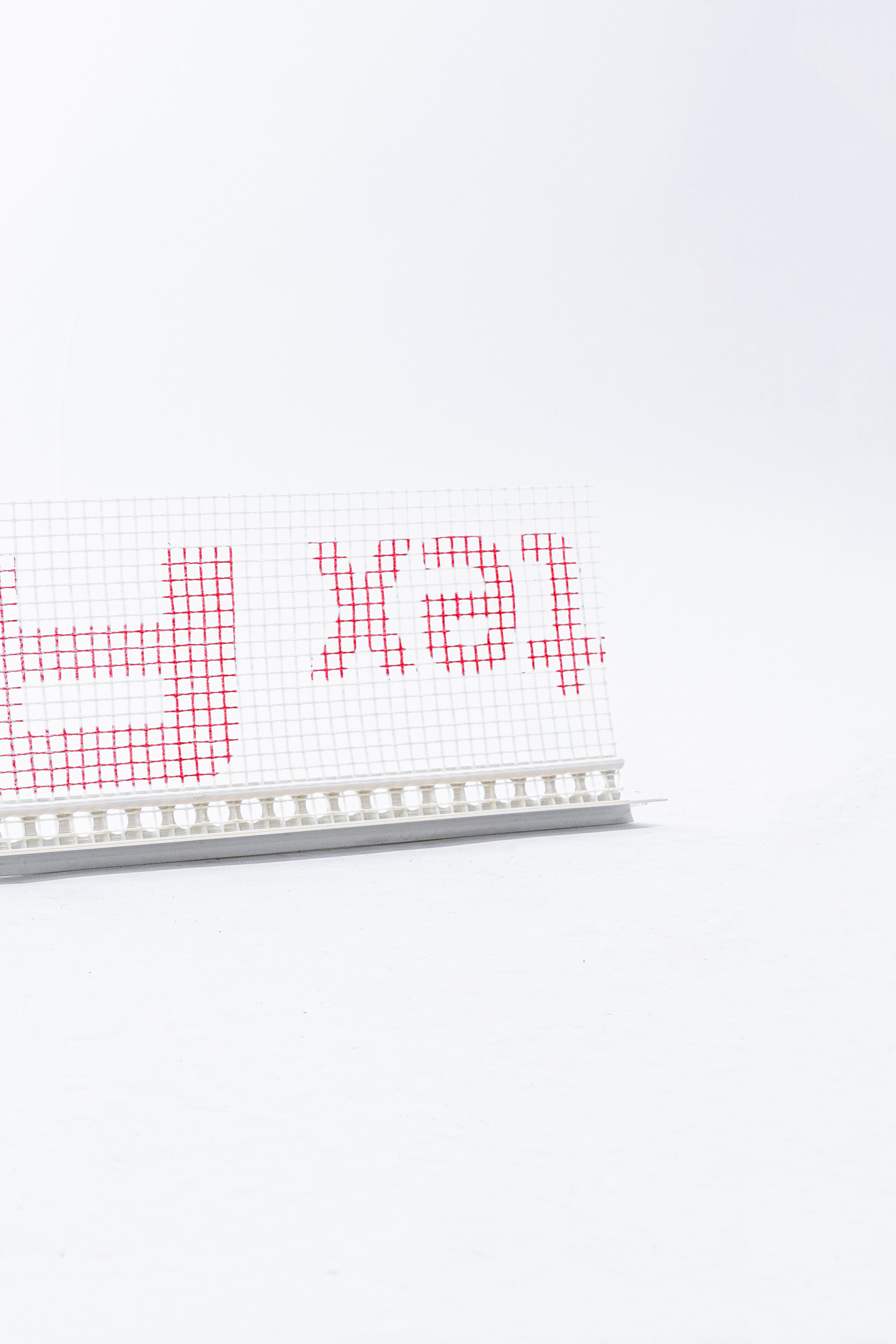

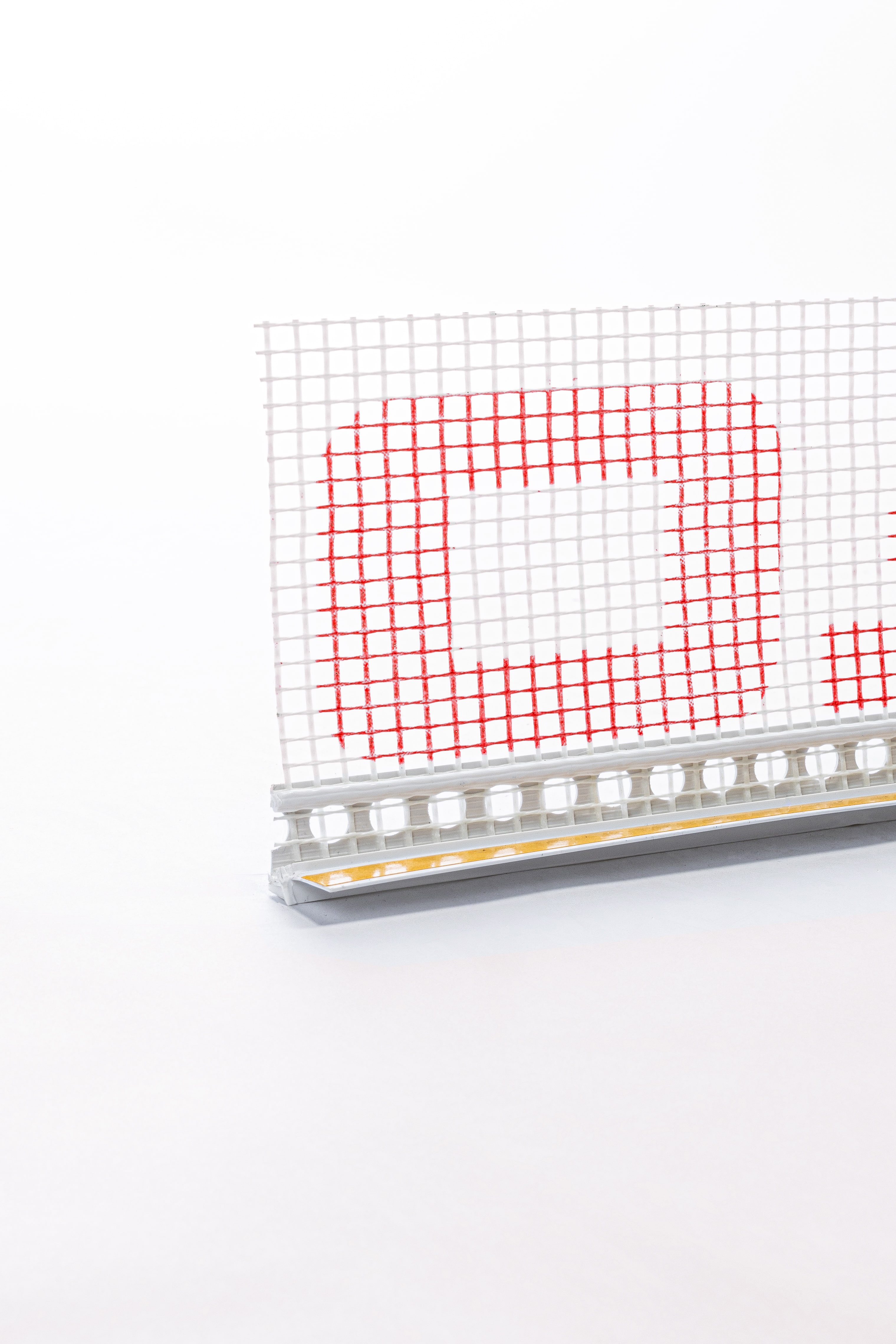

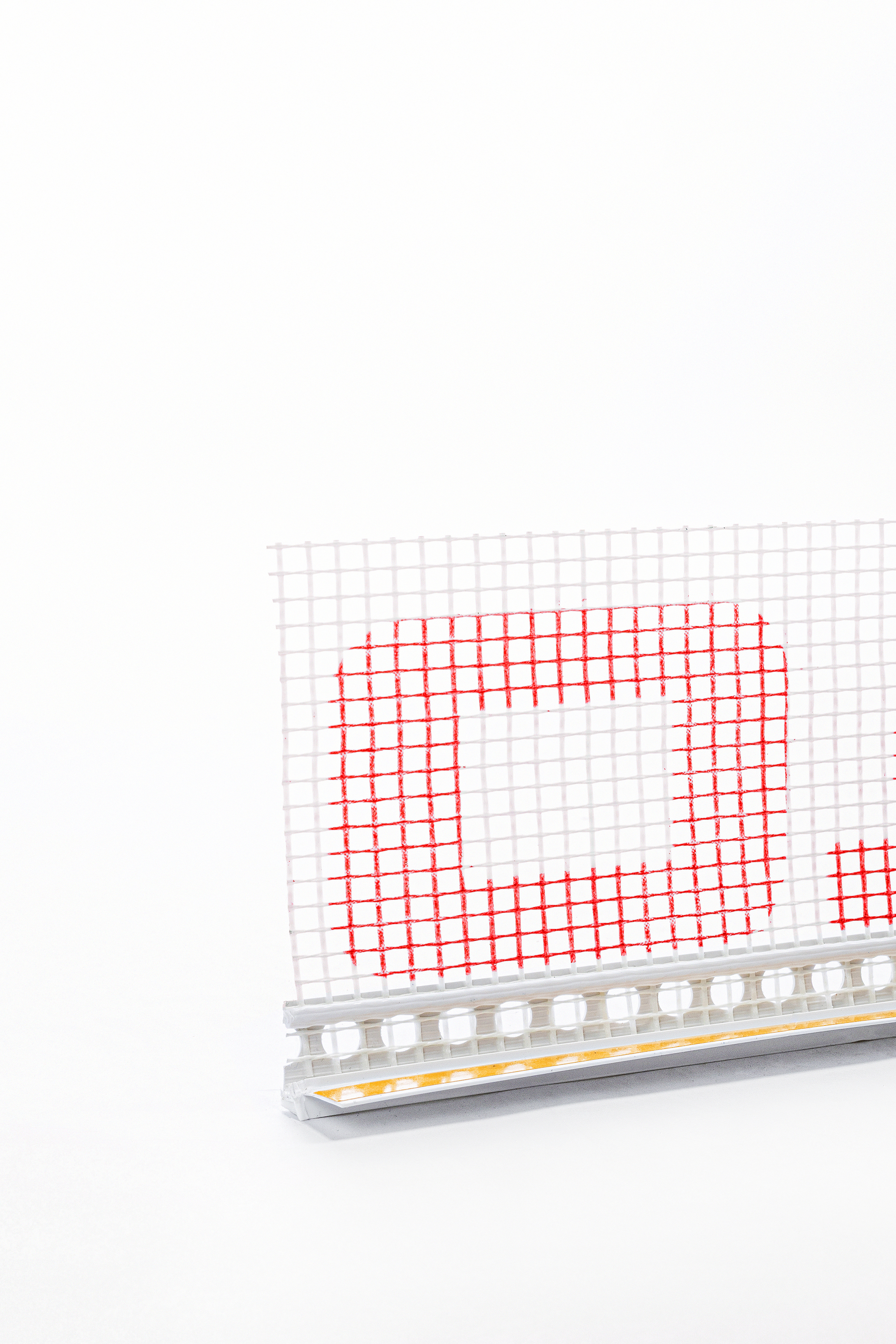

GATEX Connection Window Profile with Mesh Protector – 2.4 m PVC Profile with Integrated Fiberglass Mesh and Dual Adhesive Seals Designed for precision sealing and clean joint transitions, this connection window profile from GATEX features integrated fiberglass mesh and dual adhesive systems—ensuring a durable, flexible bond between ETICS façades and window frames. It offers effective protection during construction and supports the long-term performance of façade systems.
Key Features
The connection window profile should be installed after mounting the thermal insulation boards and before applying façade adhesives and base mesh layers. Installation steps:
Step 1
Wipe window frame surfaces with a damp cloth to remove dust or debris. Allow to dry.
Step 2
Remove the liner from the PE foam tape and press the profile firmly onto the frame across its full length.
Step 3
Remove the protective film from the double-sided adhesive tape and apply the protective foil to cover the entire window surface.
Step 4
Apply façade adhesive and embed the fiberglass mesh of the profile into the wet layer. Continue with the remaining façade system layers.
Step 5
After all façade work is completed, remove the protective foil along with the detachable upper edge of the profile.
Installation temperature: +5°C to +35°C
Installation must be performed by qualified or trained personnel.
