Fiberglass Products

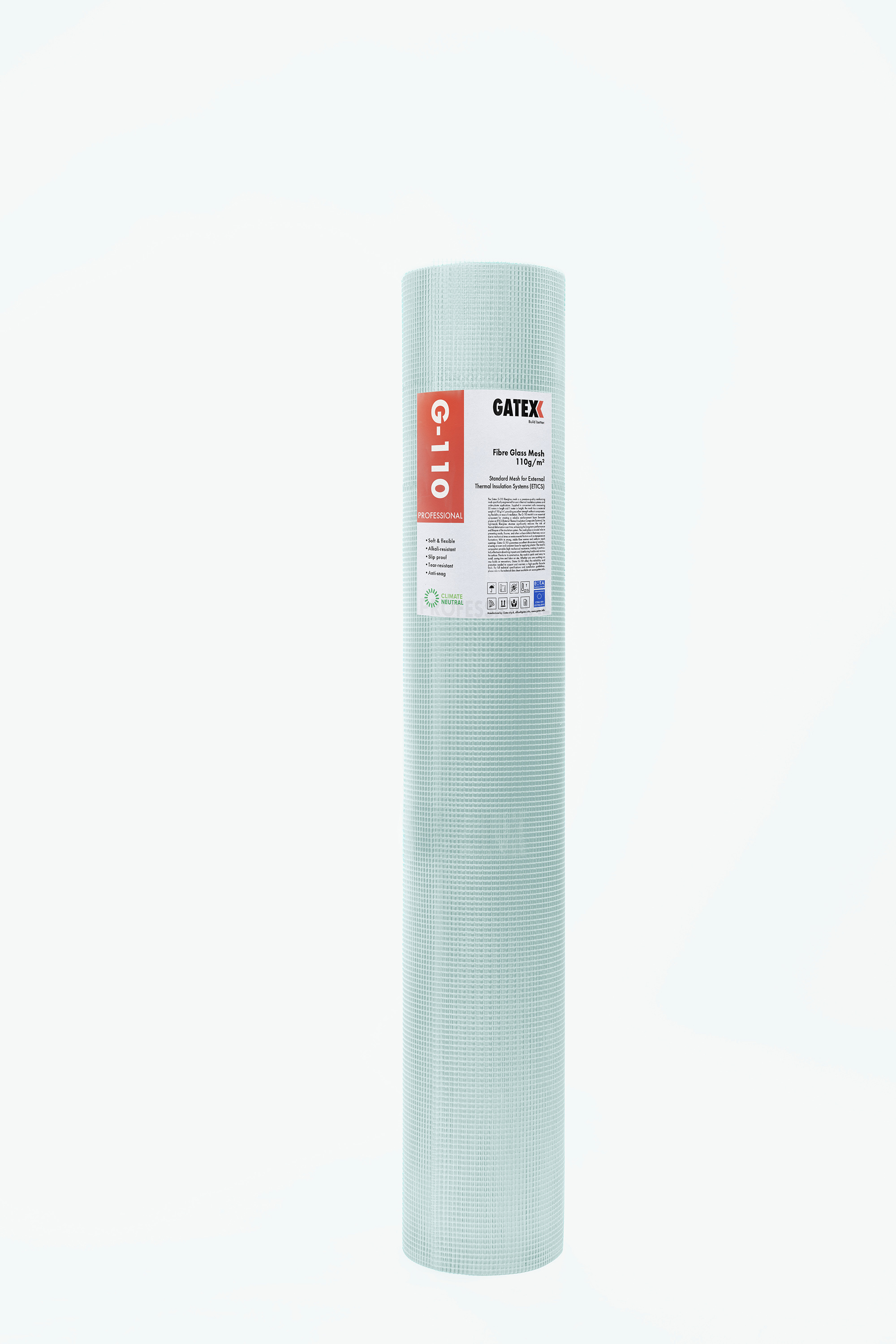

GATEX G–110 g/m² PRO

(4 stars) • 3 reviews

ETICS 10X10 Fiberglass Mesh High-strength fiberglass mesh engineered for External Thermal Insulation Composite Systems (ETICS). G110 PRO ensures superior reinforcement under plaster layers, enhancing façade durability and protecting against mechanical and thermal stress.

$ 2,500.00 USD

(4 stars) • 3 reviews

Request Data Sheet

Key Features

Weight per unit area: approx. 110 g/m²
Mesh size: approx. 10,0 (±1,0 ) mm × 10 (±1,0) mm
Width: 100 cm
Length per roll: 50 m
Color: White (standard)
Packaging: Shrink-wrapped rolls with label

Free shipping over $500

The GATEX G110 PRO fiberglass mesh must be embedded into a base layer of smoothing adhesive (min. 2–3 mm) applied to the insulation surface. Installation steps:

Unroll the mesh vertically, top to bottom
Embed using a float or spatula with uniform pressure
Ensure overlaps of at least 10 cm between strips
Avoid creases, folds, or air bubbles
Apply a second adhesive layer over the mesh to seal

Important:
Mesh overlaps must not align with panel joints. In wall corners, around windows or other openings, embed diagonal reinforcement pieces (approx. 20 × 30 cm) to strengthen vulnerable areas.

‍

Dense, stable fiber structure with consistent mesh openings
High mechanical resistance and dimensional accuracy
Soft and flexible for efficient installation
Alkali-resistant for long-lasting performance
Tear-resistant and slip-proof design
Prevents plaster cracking and surface scratches
Reduces thermal deformation in insulated façades

Material: Glass fibre, with alkali-resistant and fibre-fixing coating.

Length: 50m (±1%)

Width: 100 cm (±1%)

Mesh size: 10.0 (±1.0) mm × 10 (±1.0) mm

Treated fabric weight: 110g/m² (±5%)

Organic content: 20 (±4)%

Average tensile strength (MD/CMD - warp/weft): 1700 N/5cm / 1600/5cm

Elongation (MD/CMD - warp/weft): 2.5-3.0%/2.5-3.0%

Average tensile strength after ageing (MD/CMD - warp/weft): > 1000 N/5 cm / > 1000 N/5 cm

Elongation after ageing (MD/CMD - warp/weft): 1.5-2.0% / 1.5-2.0%

Reaction to fire: NPD

Certification: ETAG 004, TÜV Nord

Available colors: white, orange, yellow, red, blue, green.

Standard roll size: 1 m × 50 m

Number of rolls per pallet: 35

‍

Need More Information?

Download our catalog to explore the full range of our products, including detailed specifications and performance qualities.

Contact

Reach us here: info@gatex.eu

Help

You can get more information and ask questions

Explore Other Products

Shop Img

GATEX G–145 g/m² Standard RED

Shop Img

GATEX G–160 g/m² PRO RED

Shop Img

Store in a dry place, protected from direct sunlight. Avoid mechanical stress or exposure to humidity prior to installation.

/
