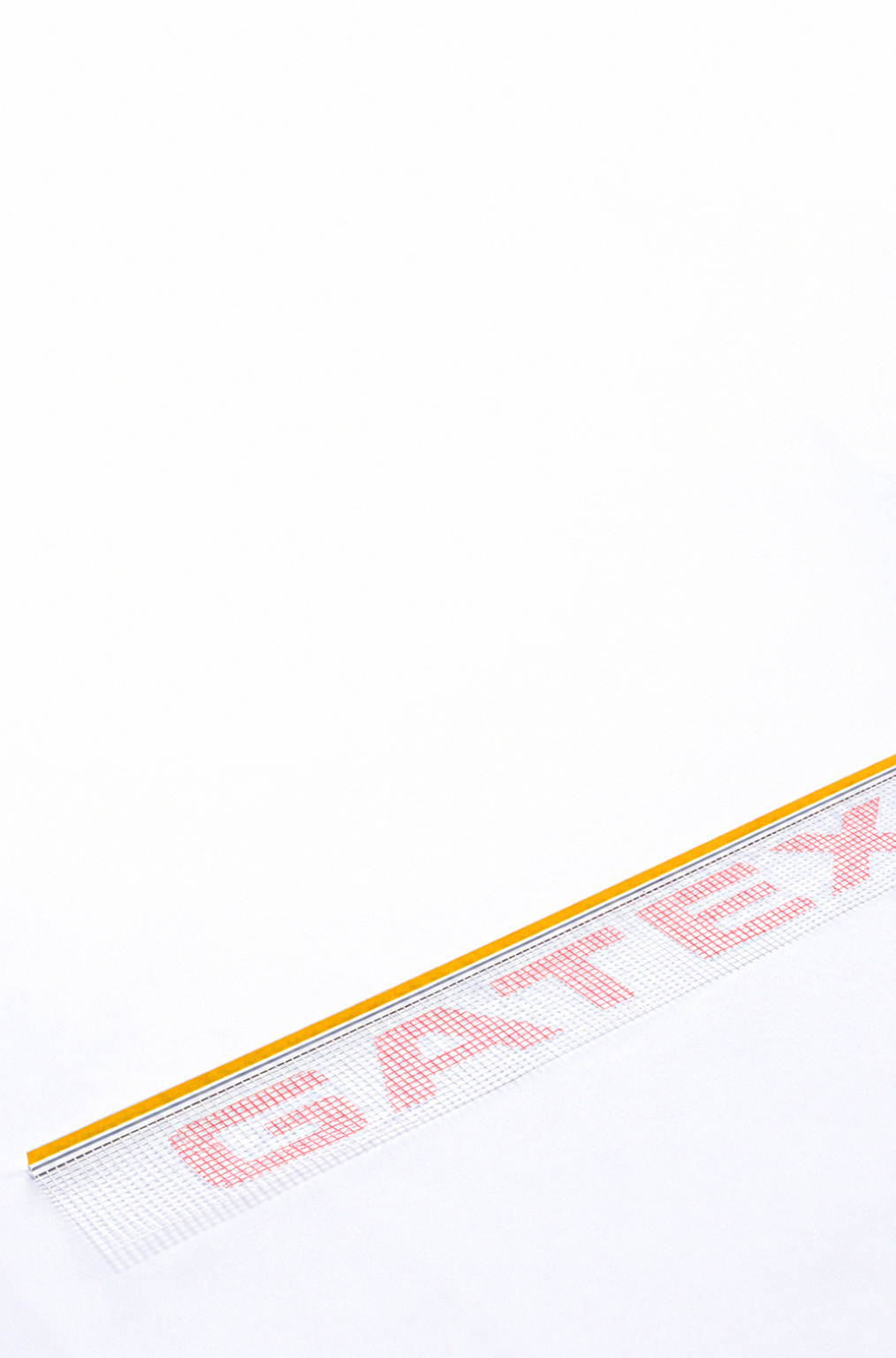

Reliable window connection profile designed for standard façade applications requiring a clean, flexible, and watertight joint between insulation layers and window frames. Equipped with integrated fiberglass mesh, PE foam tape, and double-sided adhesive, the profile offers consistent sealing and protection during the construction process.
Key Features
Install the profile after fixing the thermal insulation boards and before applying façade adhesive and mesh. Proceed as follows:
Step 1
Clean the window frame surface with a damp cloth. Allow it to dry completely.
Step 2
Remove the protective film from the PE foam tape and firmly press the profile onto the frame along its full length.
Step 3
Remove the liner from the double-sided adhesive tape and attach the protective foil over the full window area.
Step 4
Apply façade adhesive and embed the fiberglass mesh into the wet adhesive. Proceed with the remaining façade layers.
Step 5
Once all façade work is complete, remove the protective foil and the detachable part of the profile connected to it.
Installation temperature: +5°C to +35°C
Installation should be performed by qualified personnel.
