GATEX G–125 g/m² Standard

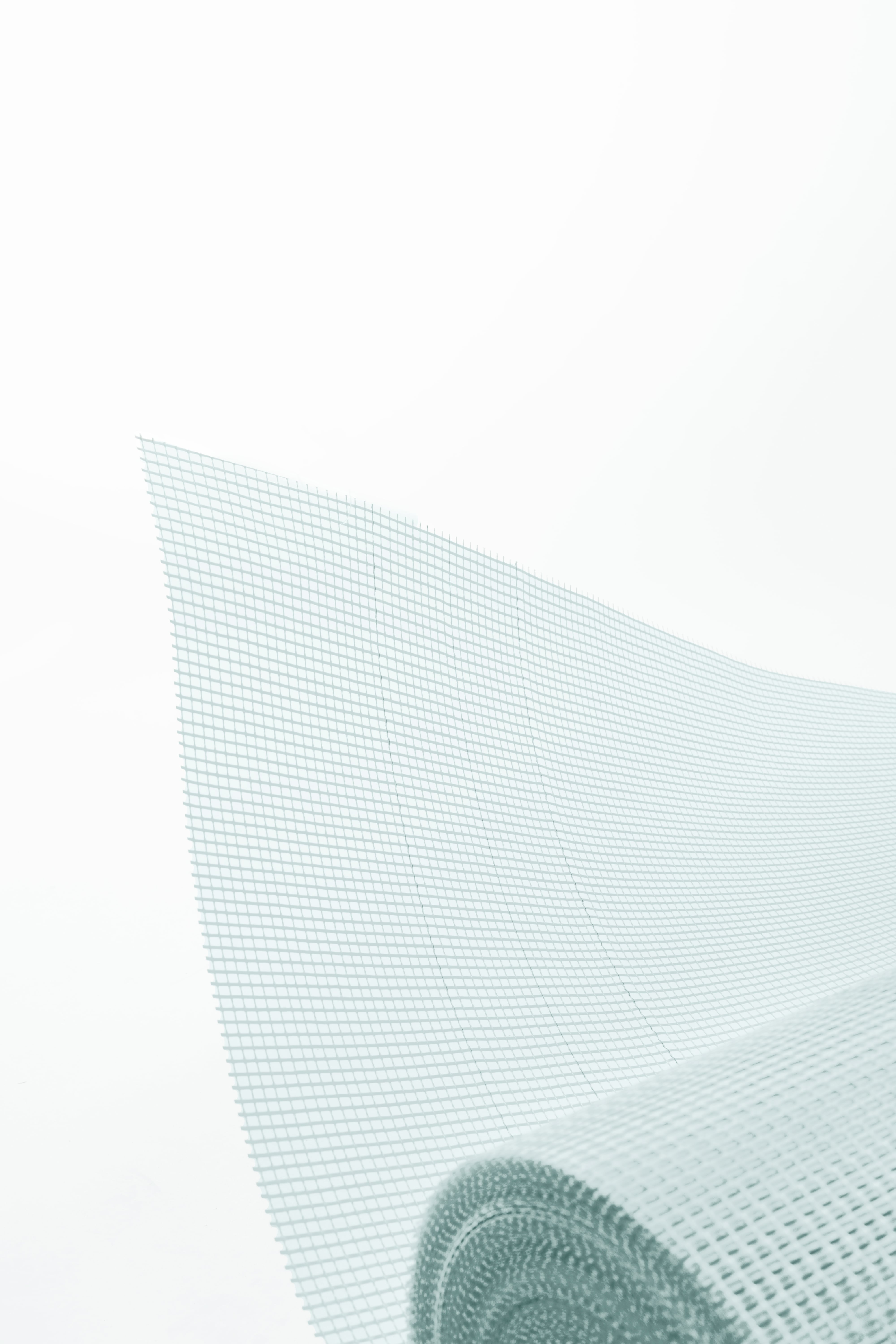

ETICS Reinforcement Fiberglass Mesh – G125 Standard High-performance fiberglass mesh for External Thermal Insulation Composite Systems (ETICS). G125 Standard provides robust reinforcement for under-plaster layers, enhancing system durability and minimizing surface deformation and cracking.

$ 1.00 USD

Request Data Sheet

Key Features

Weight per unit area: approx. 125 g/m²
Mesh size: approx. 4 × 4 mm
Width: 100 cm
Length per roll: 50 m
Color: White (standard)
Packaging: Shrink-wrapped rolls with label

‍

Free shipping over $500

The GATEX G125 Standard fiberglass mesh must be embedded into a base layer of smoothing adhesive (minimum 2–3 mm) applied to the insulation surface. Installation should proceed as follows:

Unroll the mesh vertically from top to bottom
Embed evenly using a float or spatula
Overlap mesh strips by at least 10 cm
Avoid folds, wrinkles, and air pockets
Apply a second adhesive layer over the mesh for full coverage

‍

Strong, stable fiber weave with consistent mesh openings
High mechanical strength and dimensional stability
Soft and flexible for easy on-site handling
Alkali-resistant coating for long-term durability
Slip-resistant surface texture
Tear-resistant and anti-snag construction
Reduces thermal deformation in insulation systems
Prevents façade cracking and surface damage

‍

Material: Glass fibre, with alkali-resistant and fibre-fixing coating.
Length: 50 m (±1%)
Width: 100 cm (±1%)
Nominal mesh size (MD/CMD – warp/weft): (5,0 x 6,0) ±0,5 mm
Mass per unit area: 125 g/m2 (±5%)
Organic content: 16% (±4)%
Average tensile strength (MD/CMD – warp/weft): 1300 N/5 cm / 1500 /5 cm Elongation (MD/CMD – warp/weft): < 4,0 % / < 4,0 %
Average tensile strength after ageing (MD/CMD – warp/weft): > 2000 N/5 cm / > 2000 N/5 cm; min 50% / min 50%
Elongation after ageing (MD/CMD – warp/weft): 3,5 % / < 3,5 %
Average calorific value: 6,61 MJ/kg; 1,05 MJ/m2
Thickness: 0,43 (±0,02) mm
Reaction to fire: NPD
Certification: ETAG 004, TÜV Nord
Available colors: white, orange, yellow, red, blue, green.
Standard roll size: 1 m × 50 m
Number of rolls per pallet: 35

Note:
Mesh joints should never coincide with insulation panel seams.
In high-stress zones (e.g., corners or window openings), apply diagonal reinforcement cuts approximately. 20 × 30 cm for additional crack resistance.

‍
